Bulkhead coupler

Net weight (kg)

0,2

Flow rate

72.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI)

ID passage

3/8"

Max. output pressure

174.00

Profile

INDUSTRIAL

Female thread

NPT1/2

Temperature

5.00°F to 158.00°F

Reference

Net weight (kg)

Flow rate

ID passage

Max. output pressure

Profile

Female thread

Temperature

ISI 082203

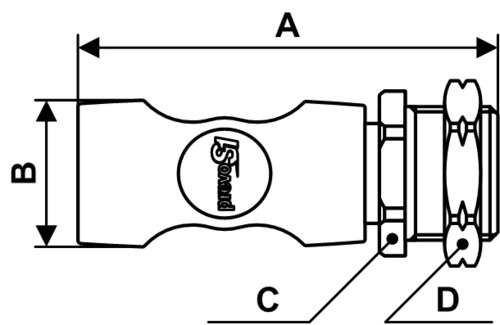

Reference

A (inch)

B (inch)

C (inch)

D (inch)

E (inch)

ISI 082203

3.82

1.3

1.14

1.26

Reference	Net weight (kg)	Flow rate	ID passage	Max. output pressure	Profile	Female thread	Temperature	3D
ISI 082203	0,2	72.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI)	3/8"	174.00	INDUSTRIAL	NPT1/2	5.00°F to 158.00°F

Reference	A inch	B inch	C inch	D inch
ISI 082203	3.82	1.3	1.14	1.26
