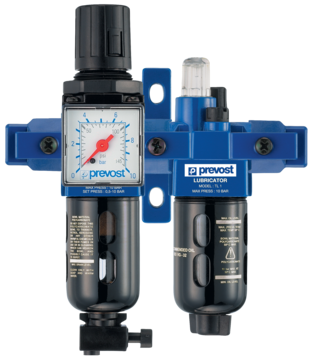

ALTO - 2-piece-set - Filter-Regulator-Lubricator (gauge included) with wall bracket and pipe adapters
ALTO - 2-piece-set - Filter-Regulator-Lubricator (gauge included) with wall bracket and pipe adapters
Net weight (kg)
0,833
Flow rate
18.00 CFM
Filtration
25.00 μm
Max. output pressure
174.00
Female thread
NPT1/4
Temperature
41.00°F to 122.00°F
Description
Reference
Net weight (kg)
Flow rate
Filtration
Max. output pressure
Female thread
Temperature
TB PSM201
TB PSM202
TB PSM203

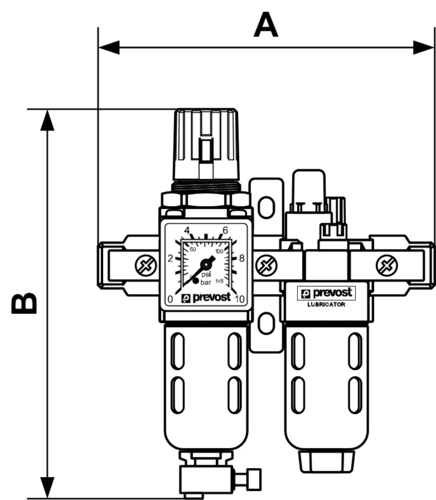

Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
TB PSM201
5.75
6.69
TB PSM202
7.17
8.66
TB PSM203
8.66
11.02
Description
| Reference | Net weight (kg) | Flow rate | Filtration | Max. output pressure | Female thread | Temperature | 3D |
|---|---|---|---|---|---|---|---|
| TB PSM201 | 0,833 | 18.00 CFM | 25.00 μm | 174.00 | NPT1/4 | 41.00°F to 122.00°F | |
| TB PSM202 | 1,405 | 44.00 CFM | 25.00 μm | 174.00 | NPT3/8 | 41.00°F to 122.00°F | |
| TB PSM203 | 2,611 | 99.00 CFM | 25.00 μm | 174.00 | NPT1/2 | 41.00°F to 122.00°F |
Dimensions
| Reference | A inch | B inch |
|---|---|---|
| TB PSM201 | 5.75 | 6.69 |
| TB PSM202 | 7.17 | 8.66 |
| TB PSM203 | 8.66 | 11.02 |
