ALTO - 2-piece-set - Filter-Regulator-Lubricator (gauge included) with wall bracket
ALTO - 2-piece-set - Filter-Regulator-Lubricator (gauge included) with wall bracket
Flow rate
18 CFM
Filtration
25.00 μm
Max. output pressure
174.00
Female thread
NPT1/4
Temperature
41.00°F to 122.00°F
Description
Reference
Flow rate
Filtration
Max. output pressure
Female thread
Temperature
TB SM201
TB SM202
TB SM203
Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
TB SM201
3.62
6.69
TB SM202
4.88
8.66
TB SM203
6.14
11.02
Description
| Reference | Flow rate | Filtration | Max. output pressure | Female thread | Temperature | 3D |
|---|---|---|---|---|---|---|
| TB SM201 | 18 CFM | 25.00 μm | 174.00 | NPT1/4 | 41.00°F to 122.00°F | |
| TB SM202 | 44 CFM | 25.00 μm | 174.00 | NPT3/8 | 41.00°F to 122.00°F | |
| TB SM203 | 98 CFM | 25.00 μm | 174.00 | NPT1/2 | 41.00°F to 122.00°F |

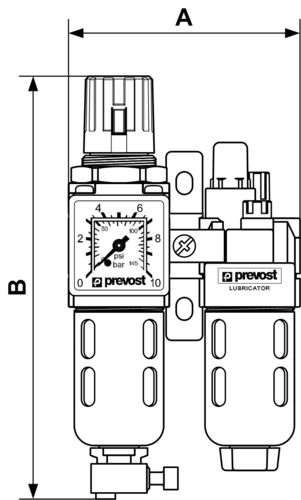

Dimensions
| Reference | A inch | B inch |
|---|---|---|
| TB SM201 | 3.62 | 6.69 |
| TB SM202 | 4.88 | 8.66 |
| TB SM203 | 6.14 | 11.02 |
